61 31 401 Removing and installing (replacing) engine compartment unlocking switch

Special tools required:

Remove engine compartment unlocking switch (1) from trim panel (2) by means of special tool 64 1 020 .

Unlock associated plug connection and disconnect.

Installation note:

Latching clamps on engine compartment unlocking switch (1) must not be damaged or missing.

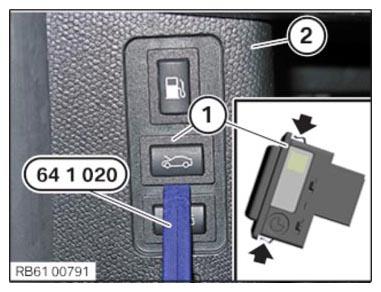

Fig 1: Removing Engine Compartment Unlocking Switch From Trim Panel Using Special Tool (64 1 020)
G11146900Courtesy of BMW OF NORTH AMERICA, INC.
