61 31 083 Removing and installing (replacing) tailgate release switch

Special tools required:

• 64 1 020

Remove tailgate release switch (1) from trim panel (2) by means of special tool 64 1 020 .

Unlock associated plug connection and disconnect.

Installation note:

Latching clamps on tailgate release switch (1) must not be damaged or missing.

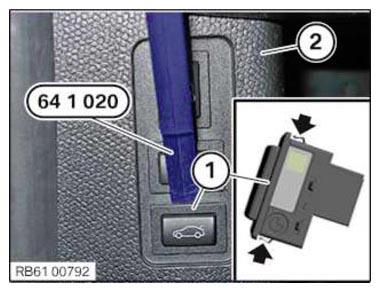

Fig 1: Removing Tailgate Release Switch From Trim Panel Using Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.
