61 31 008 Removing and installing (replacing) steering column switch cluster

IMPORTANT:

Move wheels into straight-ahead position and do not alter this position during the repair work.

Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.

Necessary preliminary tasks:

Release screws (1).

Tightening torque 61 31 3AZ .

Remove steering column switch cluster (2) in direction of arrow.

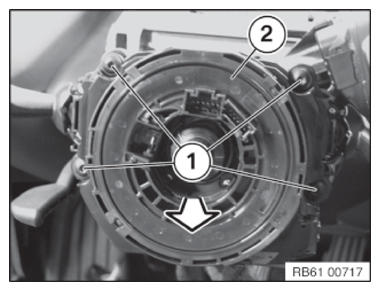

Fig 1: Removing Steering Column Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove steering column switch cluster (2).

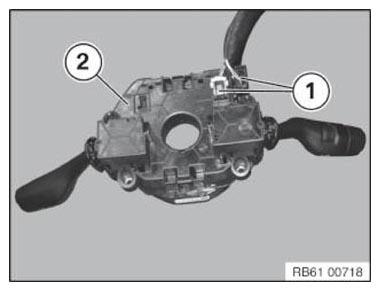

Fig 2: Identifying Steering Column Switch Cluster And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check zero position of clock spring on steering column switch cluster.

Zero position is correct only when yellow mark (1) is clearly visible.

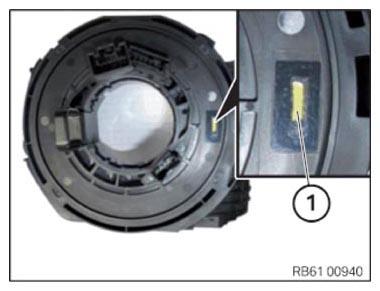

Fig 3: Identifying Coil Spring Cassette Yellow Mark

Courtesy of BMW OF NORTH AMERICA, INC.
