61 21 010 Remove and install or replace battery
WARNING:
High-voltage system - risk of serious injury or death.
The following points must be strictly observed prior to starting work :
Disconnect HIGH-VOLTAGE SYSTEM from power
Observe SAFETY INFORMATION for handling electric/hybrid vehicles.
The following points must be strictly observed prior to starting work :
Disconnect HIGH-VOLTAGE SYSTEM from power
Observe SAFETY INFORMATION for handling electric/hybrid vehicles.
WARNING:
Observe SAFETY INFORMATION for handling vehicle battery.
Follow instructions for DISCONNECTING AND CONNECTING BATTERY .
Follow instructions on INTELLIGENT BATTERY SENSOR (IBS) .
Follow instructions for DISCONNECTING AND CONNECTING BATTERY .
Follow instructions on INTELLIGENT BATTERY SENSOR (IBS) .
To ensure the correct safety and convenience functions, install only the original battery (battery size and type) stored in the vehicle order. Observe notes on BATTERY REPLACEMENT .
Necessary preliminary work:

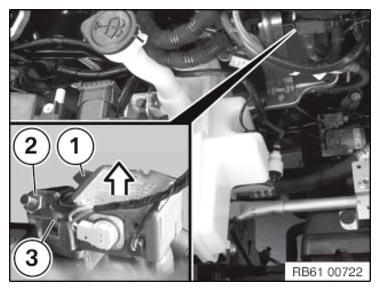

Open cover (1) and release nut (2) below it.
Tightening torque 61 21 1AZ .
IMPORTANT:
Do not under any circumstances pull or lever off safety battery terminal (3) by force.
Remove safety battery terminal (3) towards top, lay to one side and fix in position.
Release screws.
Tightening torque 61 21 5AZ .

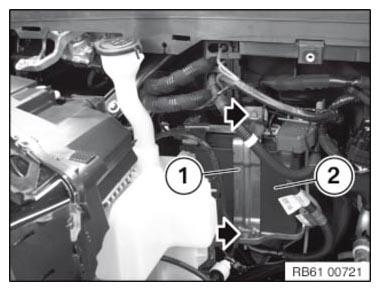

Remove retaining brackets (1).
Pull off vent hose.
Remove battery (2).
Installation note:
Make sure battery (2) is correctly seated in fixture.
Replacement:
- Register BATTERY REPLACEMENT
