64 00... Overview components, refrigerant circuit

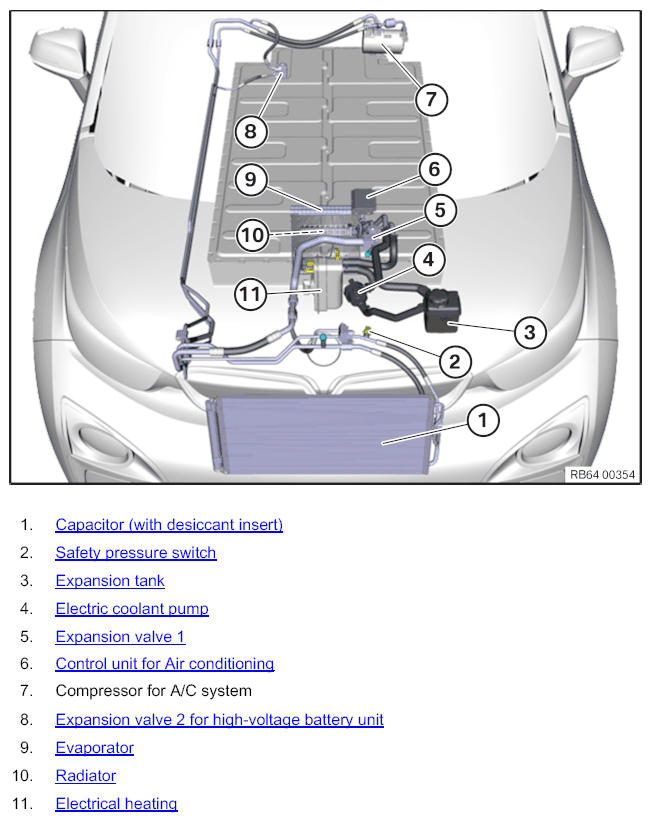

Fig 1: Overview Of Refrigerant Circuit Components (Without Heat Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

Refrigerant circuit without heat pump (optional equipment 4T9):

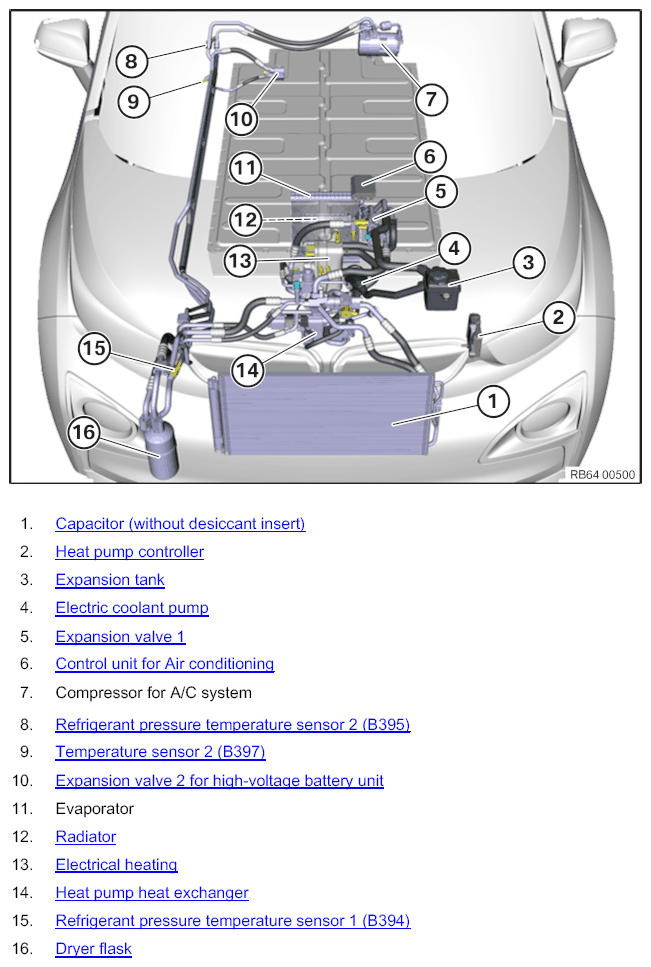

Fig 2: Overview Of Refrigerant Circuit Components (With Heat Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

Refrigerant circuit with heat pump (optional equipment 4T9):

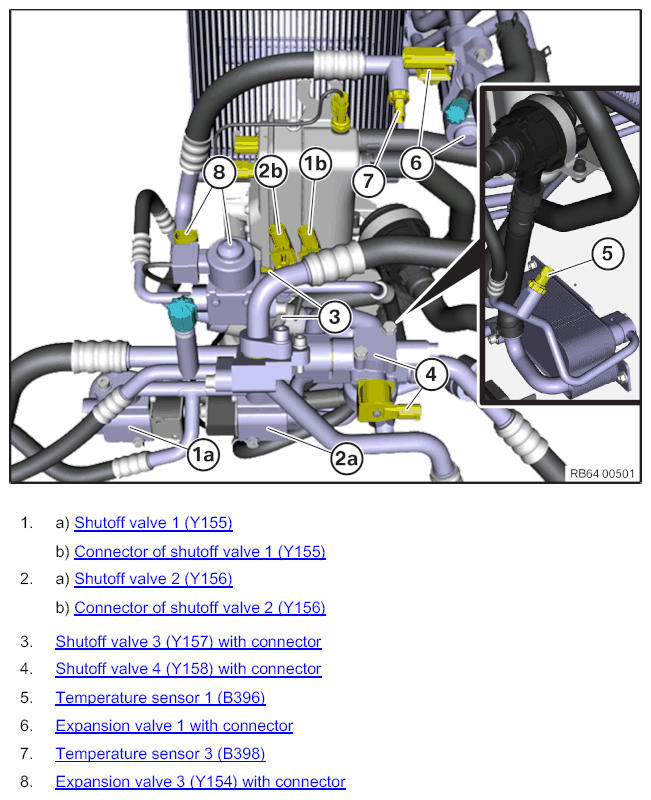

Fig 3: Overview Of Refrigerant Circuit Components (With Heat Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

Refrigerant circuit with heat pump (optional equipment 4T9):
