41 00... Frame Reference Body Dimension

Dimensions in mm.

Dimension tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the set of attachments.

The specified dimensions always refer to the centerpoint of the bore hole/screw.

Underbody view 1

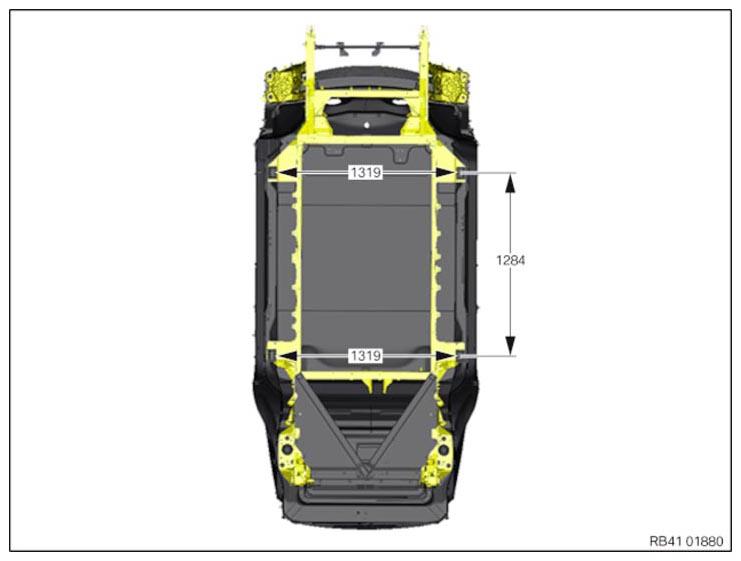

Fig 1: Underbody Frame Reference Dimensions And Measurement Points (Underbody View 1)

G11145913

Courtesy of BMW OF NORTH AMERICA, INC.

Underbody view 2:

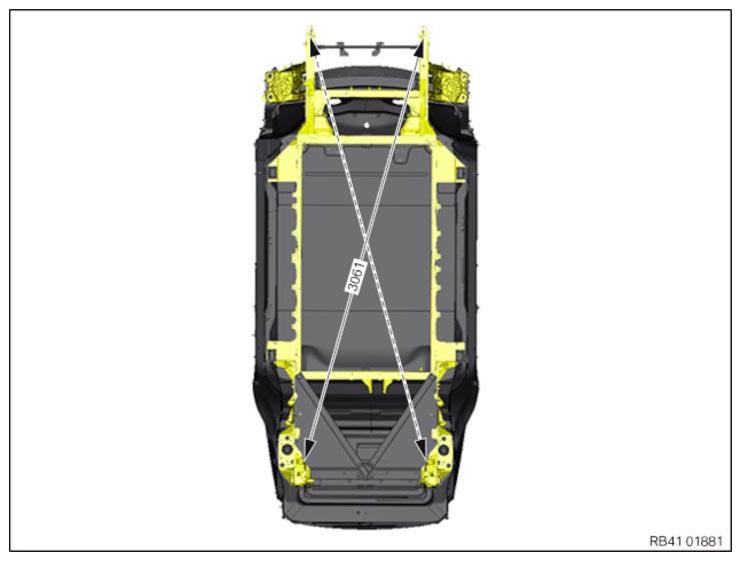

Fig 2: Underbody Frame Reference Dimensions And Measurement Points (Underbody View 2)

G11145914

Courtesy of BMW OF NORTH AMERICA, INC.

Top view, front end:

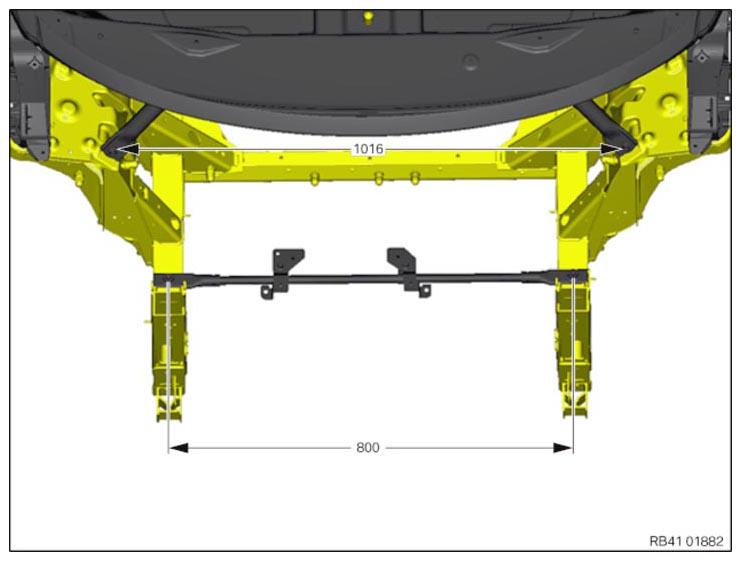

Fig 3: Engine Compartment Frame Reference Dimensions And Measurement Points (Top View, Front End)

G11145915

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

Underbody view, front end:

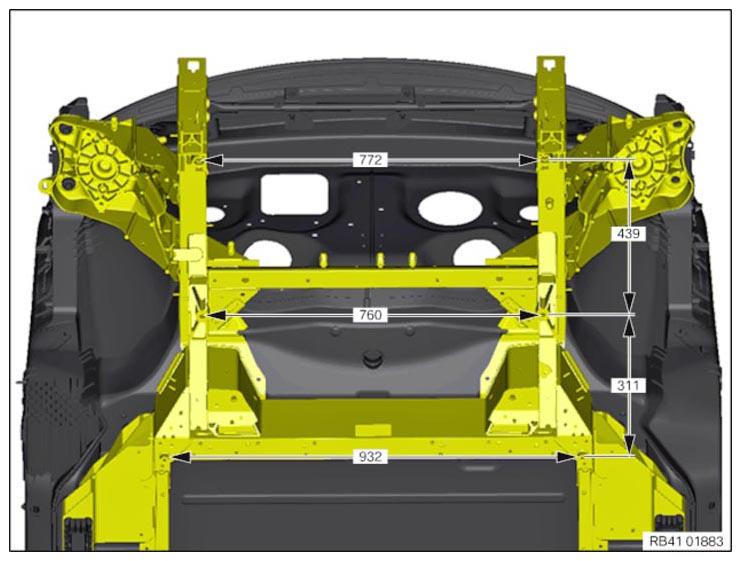

Fig 4: Underbody Frame Reference Dimensions And Measurement Points (Underbody View, Front End)

G11145916

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

Underbody view, rear end:

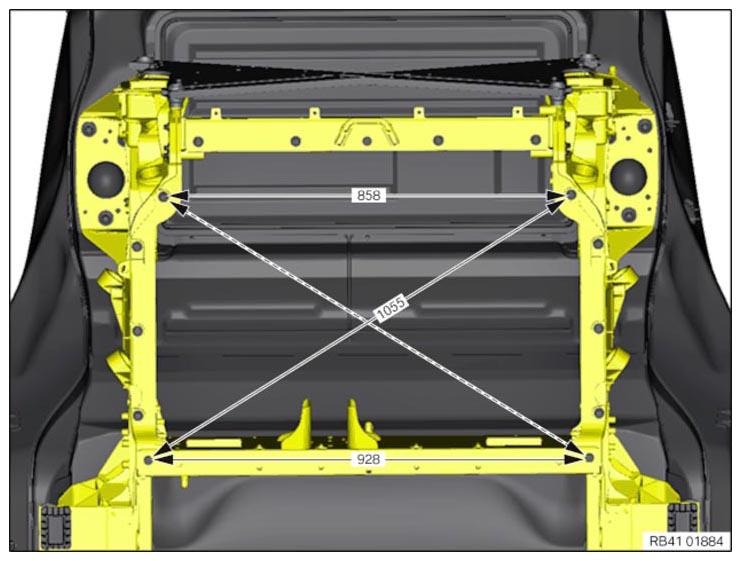

Fig 5: Underbody Frame Reference Dimensions And Measurement Points (Underbody View, Rear End)

G11145917

Courtesy of BMW OF NORTH AMERICA, INC.
