63 31... Replace LED module (interior lighting)

Unclip cover (1) in direction of arrow.

Release LED module (1) from bracket (2).

Carefully release latch mechanism (3) on LED module (1) with a suitable tool.

Pull LED module (1) off fibre-optic conductor (4) in direction of arrow.

Installation note:

Make sure that the fibre-optic conductor (4) latches correctly in LED module (1).

Bracket (2) and latch mechanisms (3) must not be missing or damaged.

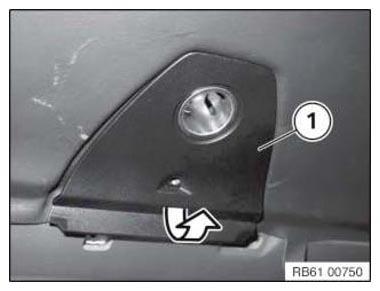

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out test module:

• Service functions
• Body
• Lights
• Interior lighting
• Ambient light and interior lighting with light package
