BDC Body Domain Controller
The Body Domain Controller (BDC) activates functions such as the following:
- Front wash/wipe system
- Rear wash/wipe system
- Washer jet heating (contents of the SA430)

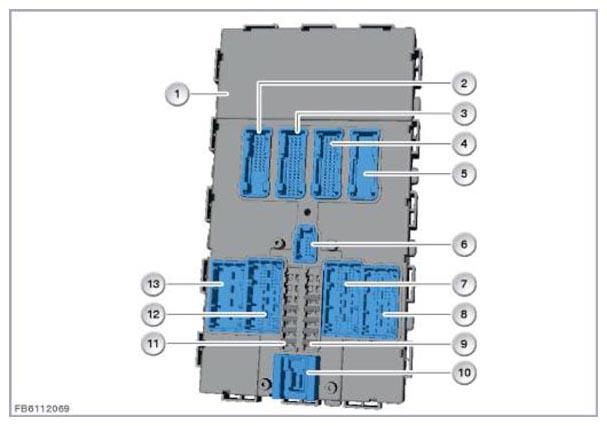

| Item | Explanation |
|---|---|
| 1 | Body Domain Controller (BDC) |
| 2 | 54-pin plug connection |
| 3 | 54-pin plug connection |
| 4 | 54-pin plug connection |
| 5 | 54-pin plug connection |
| 6 | 12-pin plug connection |
| 7 | 54-pin plug connection |
| 8 | 42-pin plug connection |
| 9 | Right fuse |
| 10 | 1-pin plug connection |
| 11 | Left fuse |
| 12 | 42-pin plug connection |
| 13 | 54-pin plug connection |
