Special tools - Stock tools

Front axle

Support adapter (3 and 4)

Use: for supporting the front axle during removal and installation.

BMW order number: 31 4 100

For use together with 00 2 030, 00 2 040, 31 4 051

Courtesy of BMW OF NORTH AMERICA, INC.

Rear axle

Support adapter

Use: for supporting the rear axle during removal and installation.

BMW order number: 33 5 180

Consisting of:

Courtesy of BMW OF NORTH AMERICA, INC.

1. 33 5 181 Support adapter 1 and 2
2. 33 5 182 Support adapter 3 and 4

For use together with 00 2 030, 00 2 040

Integrated suspension systems

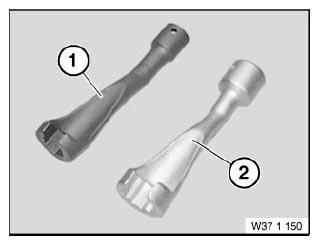

Wrench

Use: For loosening and tightening threaded connection of hydraulic lines on valve block (dynamic drive).

BMW order number: 37 1 150

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1. 37 1 151 Wrench, WAF 14
2. 37 1 152 Wrench, WAF 19

Body

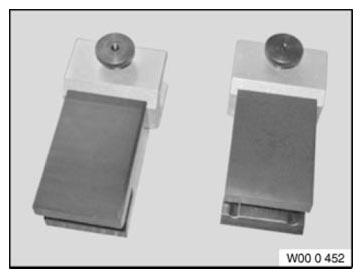

Supports (2x)

Use: For crossbar 00 0 200 for fixing engine in place.

BMW order number: 00 0 452

For use together with 00 0 200/208

Courtesy of BMW OF NORTH AMERICA, INC.

Punch template

Use: For punching substitute vehicle identification number in suspension strut dome.

BMW order number: 41 1 190

Consisting of:

1. 41 1 191 Guide plate
2. 41 1 192 Counterplate

Courtesy of BMW OF NORTH AMERICA, INC.

Air conditioning system

Sprayer

BMW order number: 64 1 300

Application: For cleaning and disinfecting evaporator of heating and air conditioning system for RHD and LHD.

Courtesy of BMW OF NORTH AMERICA, INC.

Sprayers used only together with spray gun HRS, BMW order number 81 45 9 429 217 and Seku-Aircond cleaning agent 81 22 9 410 394 (BMW Parts Sales).

Courtesy of BMW OF NORTH AMERICA, INC.
