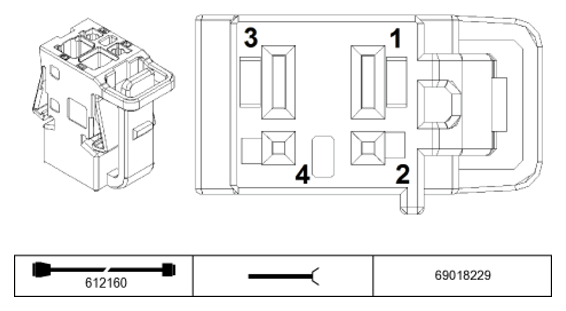

Front Passenger Seat Module A246*5B Connector End View
Pin Assignments At Plug Connector A246*5B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Activation Passenger's seat backrest heating | Passenger's seat backrest heating without multifunction seat |
| 1 | E | Ground Passenger's seat backrest heating | Passenger's seat backrest heating with multifunction seat |
| 2 | -- | Not used | |
| 3 | M | Ground Passenger's seat backrest heating | Passenger's seat backrest heating without multifunction seat |
| 3 | E | Signal Temperature sensor, right | Passenger's seat backrest heating with multifunction seat |
| 4 | A | Activation Passenger's seat backrest heating | Passenger's seat backrest heating with multifunction seat |
