13 62 535 Replacing charging pressure sensor (N57 D30 O/T 1)

Necessary preliminary tasks:

• Read out the fault memory of the DDE control unit.
• Switch off ignition.
• Remove INTAKE SILENCER HOUSING .
• Remove SOUND INSULATION  on injectors.

Unlock connector (1) and remove.

Release screw (2).

Tightening torque 13 62 5AZ .

Remove charging pressure sensor (3).

Installation note:

Check sealing ring of charging pressure sensor and replace if damaged.

Prior to installation, apply a thin coat of lubricant to sealing ring of charging pressure sensor.

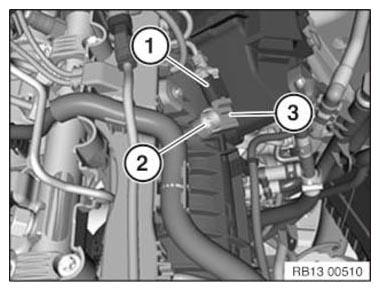

Fig 1: Identifying Charging Pressure Sensor, Screw And Connector

Courtesy of BMW OF NORTH AMERICA, INC.
