SI number

01 19 11 (742)

Consisting of:

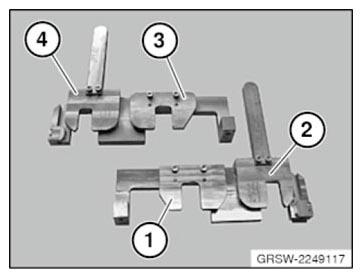

Fig 1: Identifying Gauge (2249117)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 2249137 Gauge

NOTE: Gauge, intake camshaft, bank 1. Available as part of set of special tools 83 30 2 249 117 only.

2 = 2249140 Gauge

NOTE: Gauge, exhaust camshaft, bank 1. Available as part of set of special tools 83 30 2 249 117 only.

3 = 2249144 Gauge

NOTE: Gauge, intake camshaft, bank 2. Can only be ordered via complete set 83 30 2 249 117.

4 = 2249159 Gauge

NOTE: Gauge, exhaust camshaft, bank 2. Can only be ordered via complete set 83 30 2 249 117.
