BMW Group Mobile Service

F25

    The engine oil level check is dependent on the equipment with or without on-board computer.
    The engine oil level check is subject to certain prerequisites:
  • Running engine at operating temperature after at least a 10 km journey.
  • Vehicle is parked or driving on a level road.

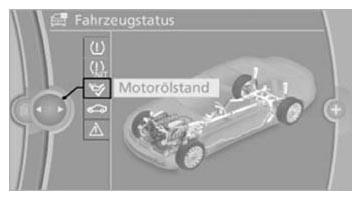

G09908472
 Displaying the oil level on the on-board computer
  1. "Vehicle information"
  2. "Vehicle status"
  3. "Engine oil level"

    The engine oil level is displayed.


Possible message:
"Engine oil level OK"
"Measurement inactive"
"Engine oil level below minimum. Top up with 1 liter of oil"
"Engine oil level too high! Have it checked by Service"
  Displaying the oil level on the radio
  1. "Menu"
  2. "Info"
  3. "Oil"

    The engine oil level is displayed.


Possible message:
"Engine oil level OK"
"Measurement inactive"
"Engine oil level below minimum. Top up with 1 liter of oil"
"Engine oil level too high! Have it checked by Service"
