Check diesel particulate sensor

Check whether a diesel particulate sensor with the notches specified in Fig 1 is mounted. If no notches can be detected on the sensor (Fig 2), replace diesel particulate sensor.

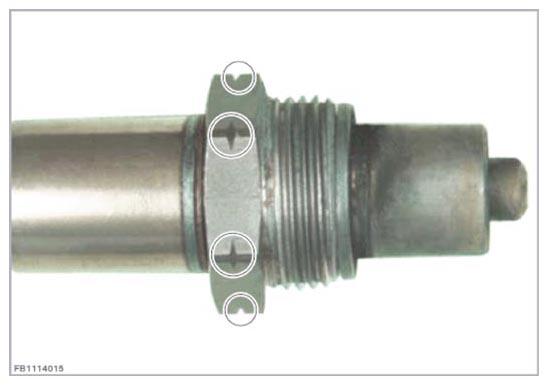

Fig 1: Identifying Current Diesel Particulate Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

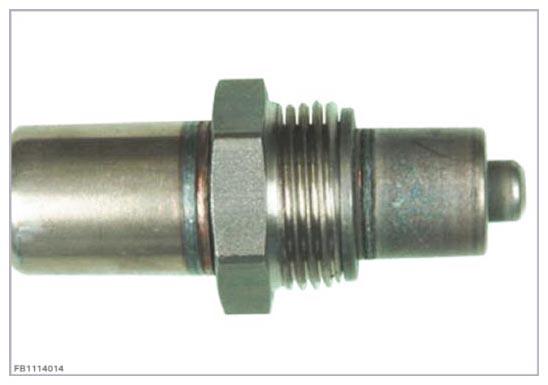

Fig 2: Identifying Diesel Particulate Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
