Home >> BMW >> 2017 >> X3 xDrive28d >> Repair and Diagnosis >> Body & Frame >> Windows >> Body Equipment - Repair >> Rear Manually Operated Windows >> 51 00.. Overview of rear door

51 00.. Overview of rear door

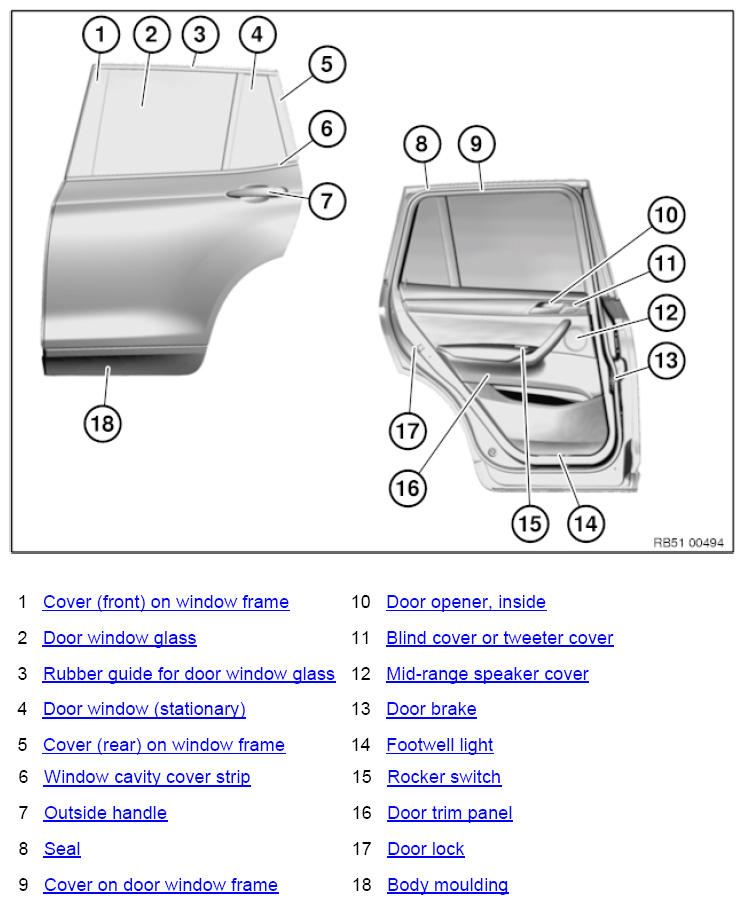

Fig 1: Overview Of Rear Door

G09948430

Courtesy of BMW OF NORTH AMERICA, INC.
