Functional check on electric EGR valve

Removing the cover from the EGR valve  .

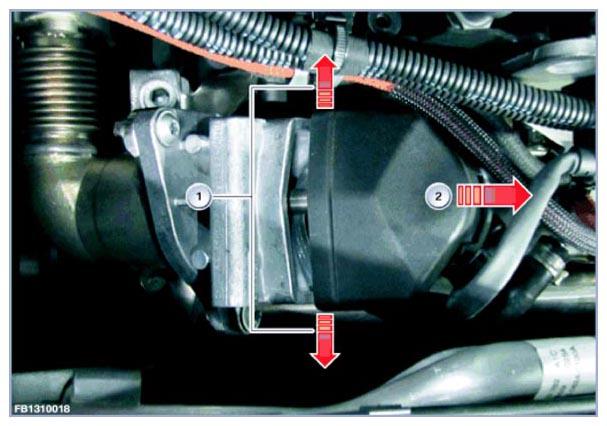

Fig 1: Removing Cover From EGR Valve
G09908977Courtesy of BMW OF NORTH AMERICA, INC.

M57 shown

  1. Release cover catch on the side.
  2. Remove cover.
