11 00 Mounting engine on assembly stand (N55)
Special tools required:
IMPORTANT:
Aluminum screws/bolts must be replaced each time they are released
.
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Necessary preliminary tasks:
- Remove ENGINE

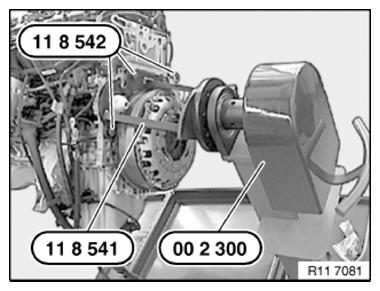

Use special tool 11 8 541 to mount engine on special tool 00 2 300 .
Mount engine or engine block with special tool 11 8 542 on 11 8 541 .
