61 31 195 Removing and installing (replacing) front controller

Necessary preliminary tasks:

• Remove side clamp on center console. See 51 16 178 REMOVING AND INSTALLING (REPLACING) SIDE CLIP AT CENTER CONSOLE .

Release screws (1).

Tightening torque 61 31 2AZ .

Remove controller (2) from side clamp on center console cover (3).

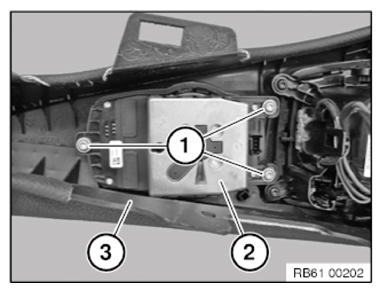

Fig 1: Identifying Controller, Center Console Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
