61 31 118 Replacing front passenger power windows switch

Special tools required:

00 9 340

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch cover.
If necessary, tape off working area.

Lever out switch cover with switch for power window regulator (1) from armrest using special tool 00 9 340 .

Disconnect associated plug connection and remove switch cover with switch for power window regulator (1).

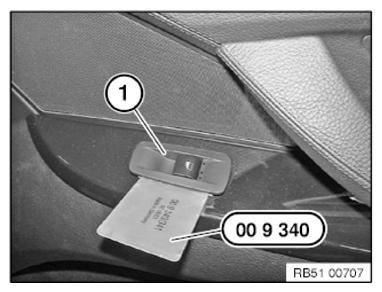

Fig 1: Removing Switch Cover With Switch For Power Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged.

Make sure power window switch (2) is correctly seated.

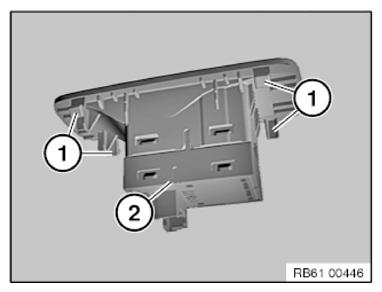

Fig 2: Identifying Power Window Switch And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release switch for power window regulator (1) at latch mechanisms (2) on both sides and pull it out of switch cover (3).

Installation note:

Latch mechanisms (2) must not be damaged or missing.

Make sure power window switch (1) is correctly seated in switch cover (3).

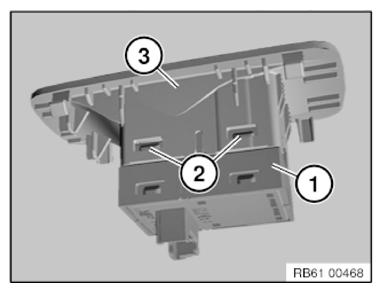

Fig 3: Identifying Power Window Regulator Switch, Latch Mechanisms, Switch Cover

Courtesy of BMW OF NORTH AMERICA, INC.
