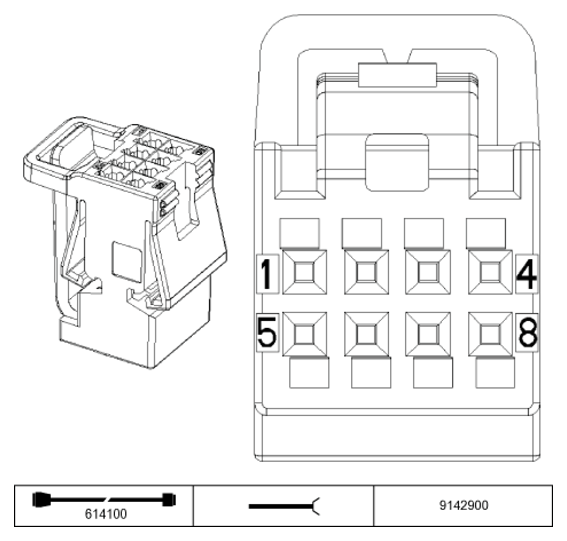

Front Passenger Seat Module A246*8B Connector End View
Pin Assignments At Plug Connector A246*8B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Switch signal | Switch block for seat adjustment on passenger's side |
| 2 | E | Switch signal | Switch block for seat adjustment on passenger's side |
| 3 | E | Switch signal | Switch block for seat adjustment on passenger's side |
| 4 | -- | Not used | |
| 5 | A | LED activation Switch block for seat adjustment on passenger's side | Switch block for seat adjustment on passenger's side |
| 6 | E | Ground Switch block for seat adjustment on passenger's side | Switch block for seat adjustment on passenger's side |
| 7 | A | Voltage supply Switch block for seat adjustment on passenger's side | Switch block for seat adjustment on passenger's side |
| 8 | -- | Not used |
