REP-TAT-P-6135-02 Install the front electronic module (FEM)
- Insert the front electronic module (FEM) (3) and tighten the bolt (2).
Tightening torque:
Front electronic module (FEM) on the A-pillar: 1.7 Nm

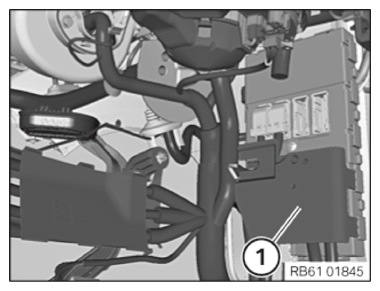

- Connect all connectors (1) and lock.

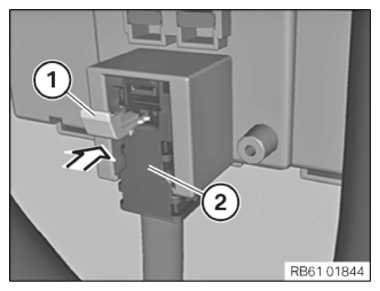

- Insert positive battery cable (2).
- Close lock (1) indirection of arrow.
- Secure cover (1).
Follow-up work:
- Install the side trim panel in footwell on right A-pillar
- Install the bottom right instrument panel trim
- Install the front door sill cover strip
- Connect the battery earth lead
- Install the right luggage compartment trim panel
- Encode/program CONTROL UNIT(S)
