Replacing pulse sensor on intake camshaft (N55T0 Engine) (2016-2018)
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks:
- Read out the fault memory of the DME control unit.
- Switch off ignition.
- Remove INTAKE SILENCER HOUSING .

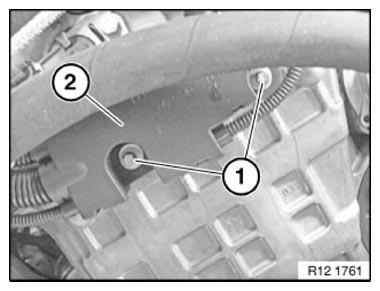

Release screws (1).
Slide cable channel (2) to one side.
Unlock connector (1) and remove.
Release screw.
Tightening torque 13 62 1AZ .
Remove pulse sensor (2).
NOTE:
Check stored fault messages.
Delete fault memory.
Delete fault memory.
