Removing and installing/replacing control unit/module for seat heating (2016-2022)
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
NOTE:
To facilitate installation/removal of control unit, move seat upwards and to the rear fully.

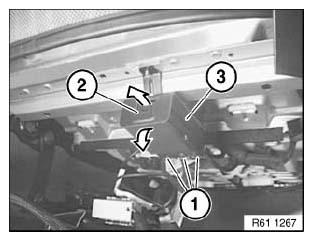

Disconnect plug connection (1).
Open lock (2) in direction of arrow.
Remove control unit/module for seat heating (3) downwards.
Installation note:
Make sure control unit/module for seat heating (3) is correctly engaged.
