Removing and installing/replacing clutch switch module (2016-2022)

Necessary preliminary work:

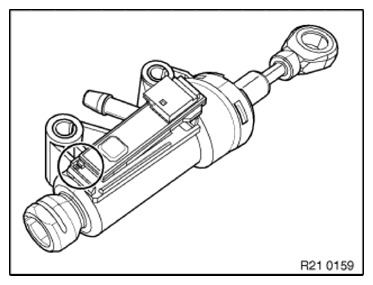

NOTE: For purposes of clarity, clutch master cylinder (2) is shown removed.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Unlock plug (4) and disconnect from housing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clutch switch module is secured against incorrect installation.

Clutch switch module must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.
