Removing and installing/replacing USB interface connecting socket (2016-2022)
Necessary preliminary tasks:
- Remove GLOVE BOX WITH HOUSING .
NOTE:

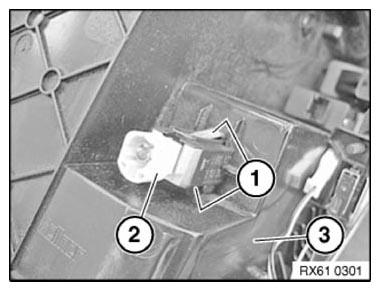

Similar to illustration.
Release retaining clamps (1).
Push USB interface connecting socket (2) to the front from glove box (3).
Installation note:
Retaining clips (1) must not be damaged.
Make sure USB interface connecting socket (2) is correctly seated.
