Removing and installing/replacing Start/Stop switch (2016-2022)

Special tools required:

NOTE: When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

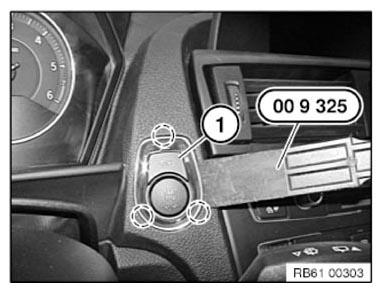

Pry out Start/Stop switch (1) at the marked retaining points using special tool 00 9 325.

Disconnect associated plug connection and remove Start/Stop switch (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

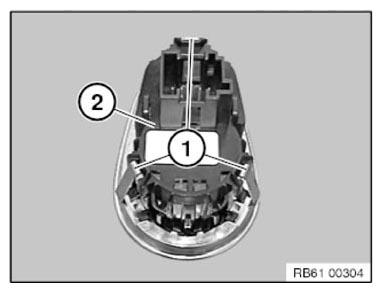

Retaining clips (1) on Start/Stop switch (2) must not be bent or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
