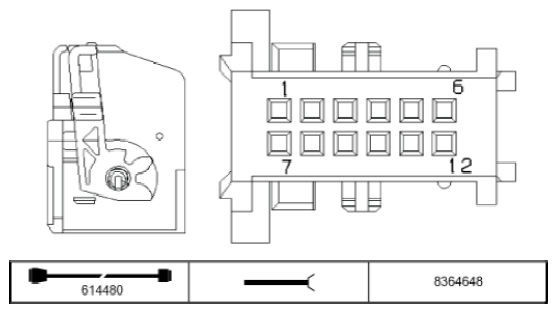

Front Electronic Module A173*10B Connector End View
Pin Assignments At Plug Connector A173*10B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E/A | Ethernet data line | Headunit |
| 2 | E/A | Ethernet data line | Headunit |
| 3 | E/A | Ethernet data line | Headunit |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | E/A | Ethernet data line | Headunit |
| 8 | E/A | Ethernet data line | Headunit |
| 9 | A | Locator lighting | DVD changer or Headunit |
| 10 | E/A | K-CAN2 bus | Bus connection |
| 11 | E/A | K-CAN2 bus | Bus connection |
| 12 | A | Power supply, terminal 30F | Telematics Communication Box basic version |
