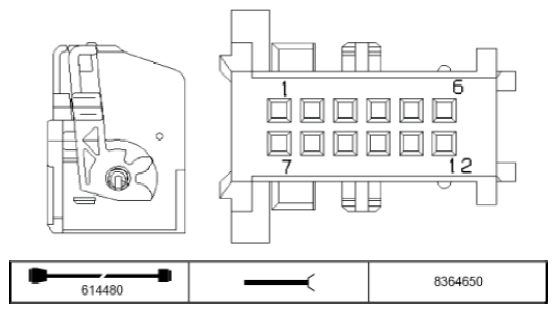

Camera-Based Driver Assistance Systems A56*1B Connector End View
Pin Assignments At Plug Connector A56*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Ground | Camera-based driver support systems camera heating |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | A | Activation Camera-based driver support systems camera heating | Camera-based driver support systems camera heating |
| 7 | E | Supply, terminal 15 | Fuse F44 |
| 8 | -- | Not used | |
| 9 | E/A | PT-CAN bus signal | Bus connection |
| 10 | E/A | PT-CAN bus signal | Bus connection |
| 11 | -- | Not used | |
| 12 | M | Ground | Ground point |
