Rear electronic module

The Rear Electronic Module (REM) is located in the vehicle luggage compartment on the right. The Rear

Electronic Module (REM) is the control unit which controls the functions in the rear section of the vehicle. Via data exchange with the Front Electronic Module (FEM), it controls the central locking system, the vehicle lights and the rear power window regulators.

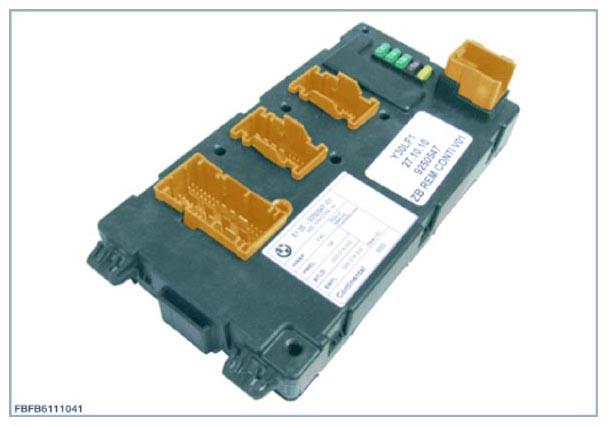

The following graphic shows the Rear Electronic Module (REM).

Fig 1: Overview Of Rear Electronic Module

Courtesy of BMW OF NORTH AMERICA, INC.

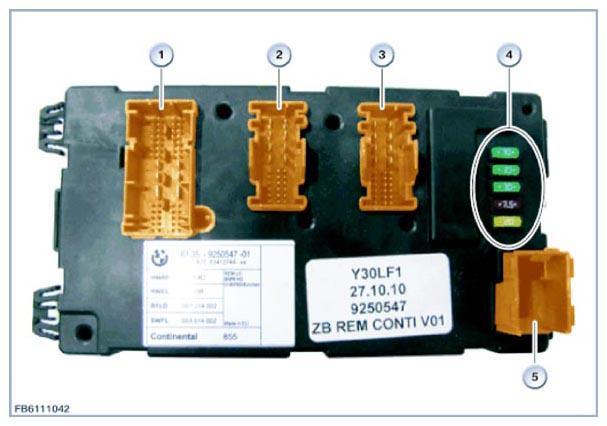

The following graphic shows the plug connections of the Rear Electronic Module (REM).

Fig 2: Overview Of Rear Electronic Module Components

Courtesy of BMW OF NORTH AMERICA, INC.

To avoid confusion during connection, connector housings of the same color have different encoding. This prevents them being inserted in the wrong position inadvertently.

Fuses for the following consumers are installed in the fuse block:

• Heated rear window
• Power window regulators, driver's side, rear
• Power window regulators, rear passenger's side
• Roller sunblind
• Rear wiper

The following graphic shows the fuse assignment of the Rear Electronic Module (REM).

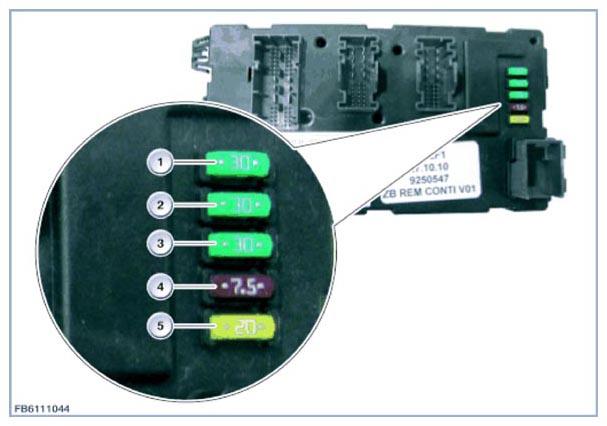

Fig 3: Overview Of Rear Electronic Module Fuse Assignment
