Setting of the NVE camera: Notes

Calibration of the NVE is possible using service function AS6654_NIVIF01!

After removing/installing the NVE camera, it must be mechanically calibrated. The mechanical setting as described below is only possible in the axial direction.

Required preliminary work:

Create access to the adjusting screw.

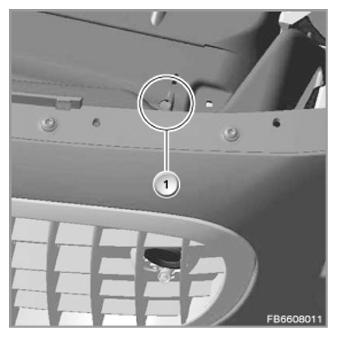

Fig 1: Overview Of Adjusting Screw Installation Location

Courtesy of BMW OF NORTH AMERICA, INC.
