Brief component description
This radio is a basic version. This radio has the following features:
- CD drive.
The CD drive is suitable for playing CDs (digital audio playback). It supports MP3 and WMA formats.
- AUX-IN connection
- 1 Tuner (FM, AM)
- CAN connection

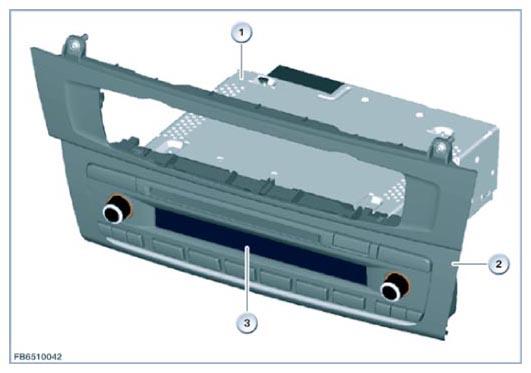

The following graphic shows the radio (RAD) using the example of F25 (other series with adapted front trim panel).
| Item | Explanation |
|---|---|
| 1 | Radio (Radio DIN housing) |
| 2 | Font trim panel with integrated buttons and rotary push-buttons |
| 3 | 2-line display |

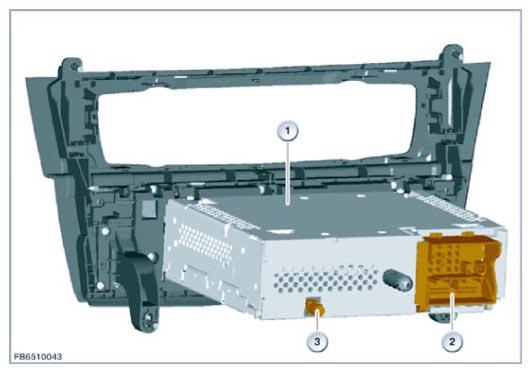

The rear side of the radio has 2 plug connections that are used to connect the control unit to the vehicle electrical system.
The 2-line monochrome display now also shows Check Control messages.
The integrated amplifier of the radio has an output of 4 x 25 watts. This radio does not include a telephone function.
| Item | Explanation |
|---|---|
| 1 | Radio (1-DIN housing) |
| 2 | Plug connection with: Eight-pin multi-pin connector (2 each) Sixteen-pin multi-pin connector |
| 3 | Plug connection for aerial (AM, FM) |
