System overview

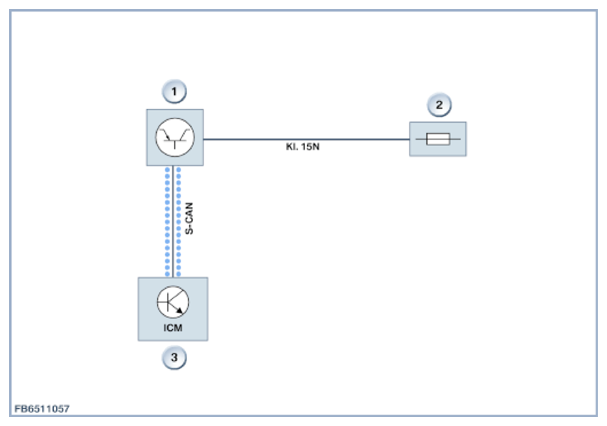

The following graphic shows the system overview of the Active Cruise Control with Stop & Go function (ACC).

Fig 1: Active Cruise Control With Stop Go Function (ACC) Circuit Diagram
G10092054Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 ACC control unit
2 Front power distribution box
3 Integrated chassis management (ICM)
