ACC operating element
The ACC operating elements are integrated into the multifunction steering wheel. The individual functions can be selected using the ACC operating elements. The set speed can be selected in the range from 30 km/h to 180 km/h in convenient increments of 10 or precise increments of 1. The set speed is displayed on the instrument cluster (or alternatively on the Head-Up Display). Furthermore, it is also possible to choose between 4 distances.

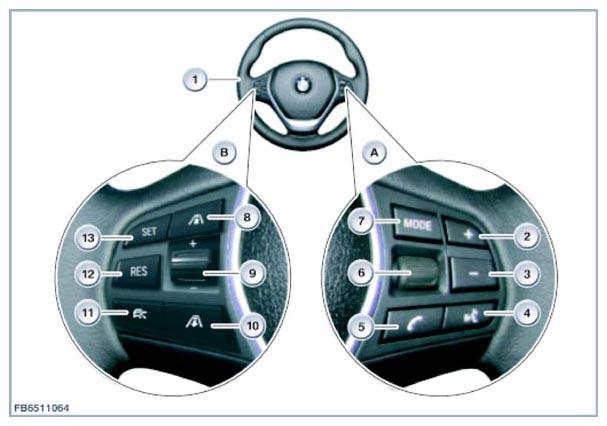

The following graphic shows the ACC operating elements on the multifunction steering wheel.
| Index | Explanation |
|---|---|
| A | Switch cluster, multifunction steering wheel, right |
| B | Left-hand multifunction steering wheel switch cluster |
| 1 | Multifunction steering wheel |
| 2 | Rocker switch + for volume increase |
| 3 | Rocker switch - for volume decrease |
| 4 | Hands-free mode button |
| 5 | Telephone button |
| 6 | Knurled wheel for selection list (e.g. selecting the radio station) |
| 7 | MODE Button for switching the audio source |
| 8 | Button to reduce the distance |
| 9 | Rocker switch to increase or decrease driving speed |
| 10 | Button to increase the distance |
| 11 | Switch cruise control to stand-by or off button |
| 12 | RES button for resumption or loading of stored speed |
| 13 | SET button to set the desired driving speed |
