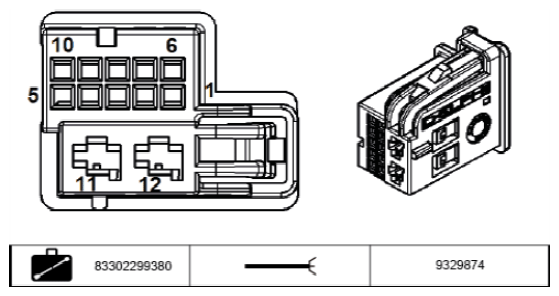

Tailgate Function Module A218*3B Connector End View
Pin Assignments At Plug Connector A218*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Hall sensor signal | Rear lid lift drive, right |
| 2 | E | Hall sensor signal | Rear lid lift drive, right |
| 3 | M | Shield | Rear lid lift drive, right |
| 4 | M | Ground, Hall sensor | Rear lid lift drive, right |
| 5 | A | Supply, Hall sensor | Rear lid lift drive, right |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | A | Activation | Rear lid lift drive, right |
| 12 | A | Activation | Rear lid lift drive, right |
