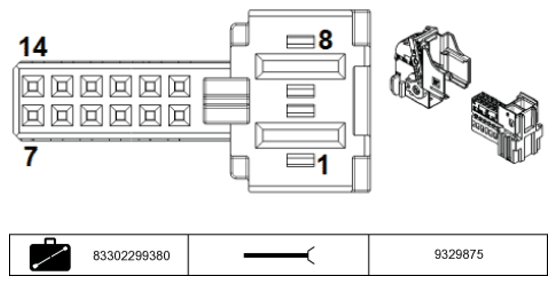

Tailgate Function Module A218*1B Connector End View
Pin Assignments At Plug Connector A218*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | M | Ground | Ground point |
| 2 | -- | Not used | |
| 3 | E | Supply, terminal 30 | Fuse F12 |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | E | Supply, terminal 30 | Fuse F226 |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | A | Activation | Acoustic sensor, automatic luggage compartment lid actuation |
| 12 | A | Activation | Acoustic sensor, automatic luggage compartment lid actuation |
| 13 | E/A | K-CAN bus signal | CAN terminator 2 |
| 14 | E/A | K-CAN bus signal | CAN terminator 2 |
