Installing undershield, rear left

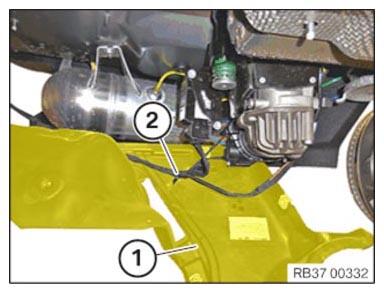

- Secure the wiring harness (2) to the undershield (1).

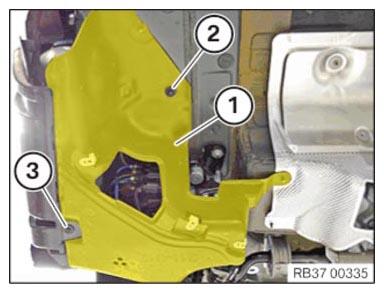

- Position the underbody planking (1).
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Undershield, rear left, on body | ||
| Plastic nut | tightening torque | 3 Nm |
- Tighten down screw (3).
TIGHTENING TORQUES SPECIFICATION
| Undershield, rear left, on bumper cover holder | ||
| Tightening torque | 3 Nm | |
