Securing the front active stabilizer

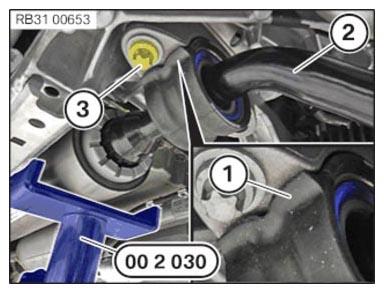

Correctly align the left and right rubber mounts (1) with the upper sections of the anti-roll bar bracket.
Carefully lift the active stabilizer (2) with the universal jack 0 490 133 (00 2 030) .
Unscrew the left and right screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Improper screw length can cause component damage.
The use of screws of improper length can lead to component damage.
- Note the correct screw length.
- Install screws that correspond to the original length.
Courtesy of BMW OF NORTH AMERICA, INC.

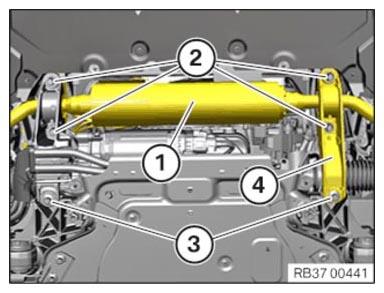

Position both upper sections of the anti-roll bar bracket and the left retainer (4) on the active stabilizer.
Replace screws (2) and (3).
Parts: Screws

Tighten down screws (2) and (3).

Screws (2) = M12x89

Screws (3) = M12x50

TIGHTENING TORQUES SPECIFICATION

Anti-roll bar to front axle support
M12 Replace screws.	Joining torque	100 Nm
	Angle of rotation	45°
