Remove cupholder
Remove cupholder

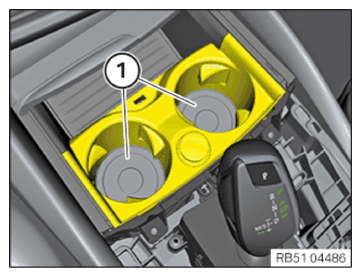

Remove the insert (1).
Courtesy of BMW OF NORTH AMERICA, INC.

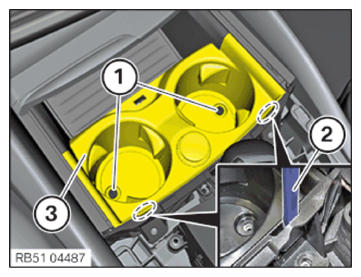

Loosen screws (1).
Position the screwdriver (2) in the marked areas and release the detents behind them.
Feed the cup holder (3) out to the top.
Unlock associated plug connections and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
