REP-TAT-P-1251-01 Remove the wiring harness section for sensor system 2

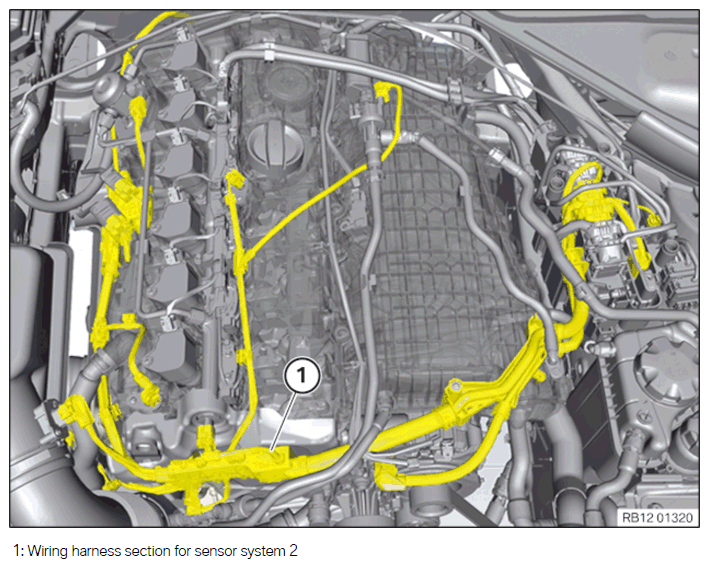

Overview: Wiring harness section for sensor system 2
Prerequisite

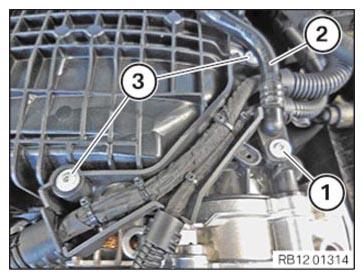

- Loosen screw (1).
- Disconnect the tank ventilation line (2) from the intake plenum.
- Loosen screws (3).
- Unlock and pull off the connector of the DME control unit.
- Unlock and remove the connector of the integrated supply module (PDM).
- Unlock and disconnect the connector of the Valvetronic servomotor.
- Unlock and disconnect the connector of the camshaft sensor of the intake camshaft.
- Unlock and pull off the camshaft sensor connector of the exhaust camshaft.
- Unlock and disconnect the connector of the rail pressure sensor.
- Unlock and pull off the connector of the hot film air mass meter.
- Pull off the connector of the front oxygen sensor.
- Unlock and pull off the connector of the monitoring oxygen sensor.
- Unlock and pull off the high pressure pump connector.
- Unlock and disconnect the connector of the heating element on the vent hose.
- Unlock and disconnect the connector of the electric controller drive for the wastegate valve controller.
- Unlock and pull off the connector of the VANOS solenoid actuator.
- Detach the wiring harness section (1) from the clamps.
- Remove the wiring harness section (1).
