Installing The Intake Adjuster
Intake adjuster

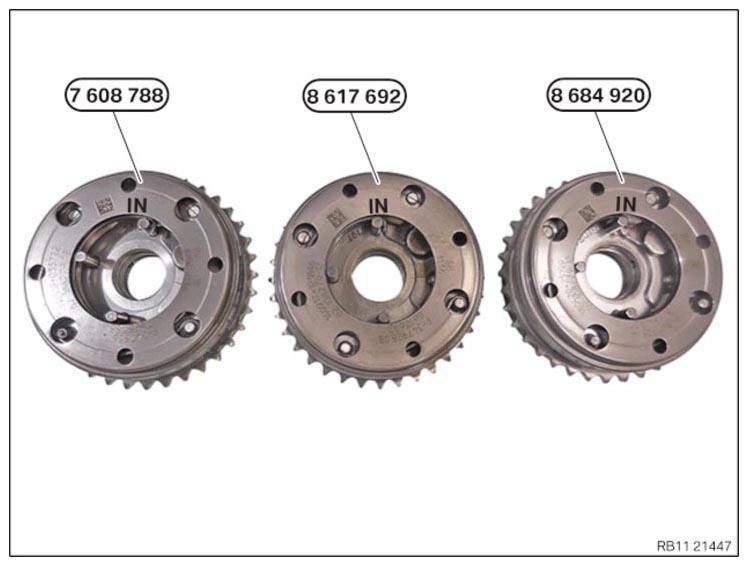

Overview graphic of the intake adjuster
NOTE:
TECHNICAL INFORMATION
After replacing one or more VANOS central valves or VANOS adjusters:
When removing, make note of the identification/part number of the VANOS central valve or VANOS adjuster and consider writing it down.
It must be replaced with a VANOS adjuster or VANOS central valve with the same part number. A mixed installation is not allowed.
Read out the vehicle I-level and proceed accordingly.
After replacing one or more VANOS central valves or VANOS adjusters:
When removing, make note of the identification/part number of the VANOS central valve or VANOS adjuster and consider writing it down.
It must be replaced with a VANOS adjuster or VANOS central valve with the same part number. A mixed installation is not allowed.
Read out the vehicle I-level and proceed accordingly.

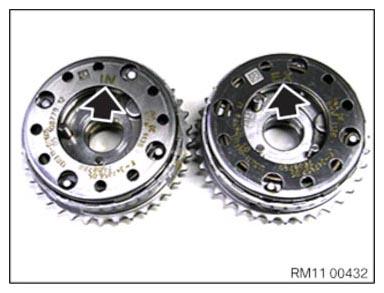

- Lay out the intake adjuster marked with IN (arrow).

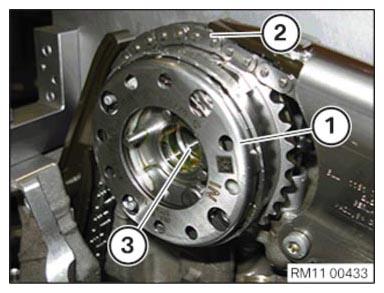

- Feed in intake adjuster (1) in the timing chain (2) and position on the intake camshaft (3).

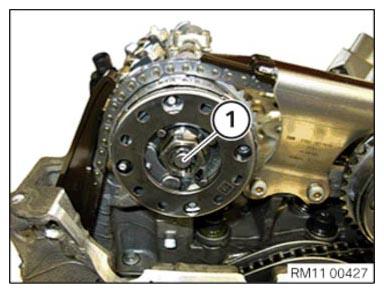

- Abut VANOS central valve (1) of intake side.
