Installing The Engine On The Assembly Jig

• Position the assembly jig 0 495 187 (00 2 300)  with the special tool 0 495 196 (00 2 320).

  Courtesy of BMW OF NORTH AMERICA, INC.

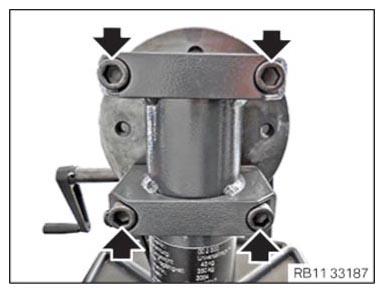

• Tighten the screws (arrows).
  TIGHTENING TORQUE SPECIFICATION



  Special tool 00 2 320 to special tool 00 2 300
  M14X95	Tightening torque	130 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

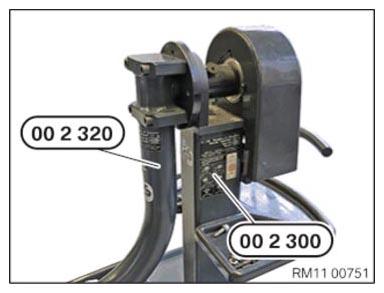

• Screw special tool 0 496 926 (11 9 030)  together with special tool 0 495 196 (00 2 320).
  TIGHTENING TORQUE SPECIFICATION



  Special tool 2 413 082 to special tool 00 2 320
  M12x65	Tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

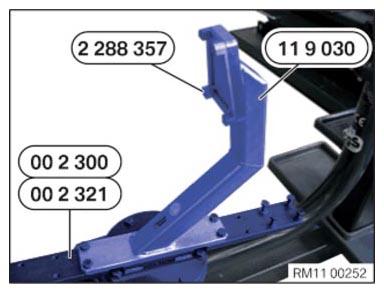

• Prepare special tool 2 288 357  together with the special tool 0 496 926 (11 9 030).

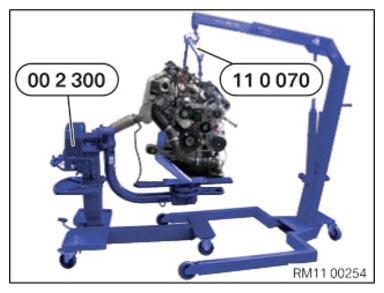

• Lift the engine with workshop crane onto the assembly stand.

  Courtesy of BMW OF NORTH AMERICA, INC.

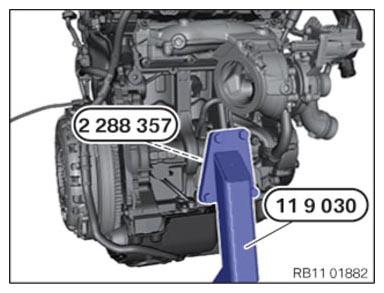

• Screw special tool 0 496 926 (11 9 030)  and special tool 2 288 357  together with the engine.

TIGHTENING TORQUE SPECIFICATION

Special tool/holder to crankcase
M10x35	Tightening torque	40 Nm
