Remove the Front Electronic Module (FEM)
Prerequisite
- Ignition is switched off.
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
TECHNICAL INFORMATION
For additional information see:
SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY
,
NOTES FOR DISCONNECTING AND CONNECTING THE VEHICLE BATTERY and NOTES ON INTELLIGENT BATTERY SENSOR (IBS)
For additional information see:
SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY
,
NOTES FOR DISCONNECTING AND CONNECTING THE VEHICLE BATTERY and NOTES ON INTELLIGENT BATTERY SENSOR (IBS)
NOTE:
TECHNICAL INFORMATION
Vehicle programming/coding must be performed after installation.
For additional information see: 61 00... Programming/coding control unit(s)
Vehicle programming/coding must be performed after installation.
For additional information see: 61 00... Programming/coding control unit(s)
Preliminary work
- Refer to DISCONNECTING THE BATTERY EARTH LEAD .
- Refer to REMOVING FRONT ENTRANCE COVER STRIP .
- Refer to REMOVING THE BOTTOM LEFT INSTRUMENT PANEL TRIM .
- Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .

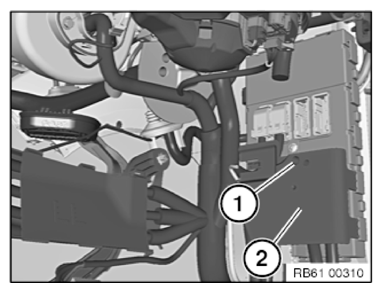

- Unscrew the bolt (1)
and remove the cover (2).

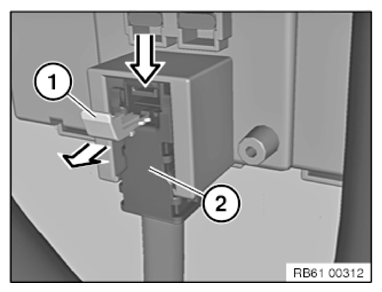

- Loosen the lock (1) in the direction of the arrow.
- Unlock the positive battery cable connector (2) at the top in the direction of the arrow.
- Remove the positive battery cable (2).

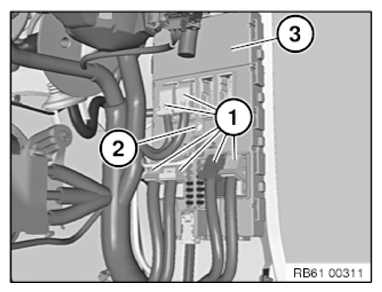

- Unlock and disconnect all plug connections (1).
- Unscrew the bolt (2) and remove the front electronic module (FEM) (3).
