32 00... General chassis and suspension definitions

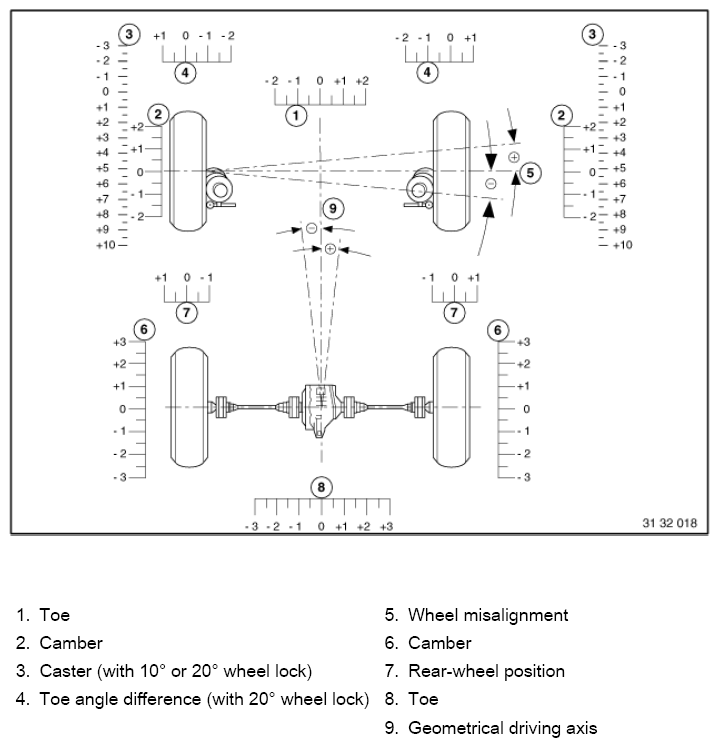

Fig 1: Identifying Wheel Camber And Caster

G10095486

Courtesy of BMW OF NORTH AMERICA, INC.
