26 11... Overview (inserted propeller shaft)

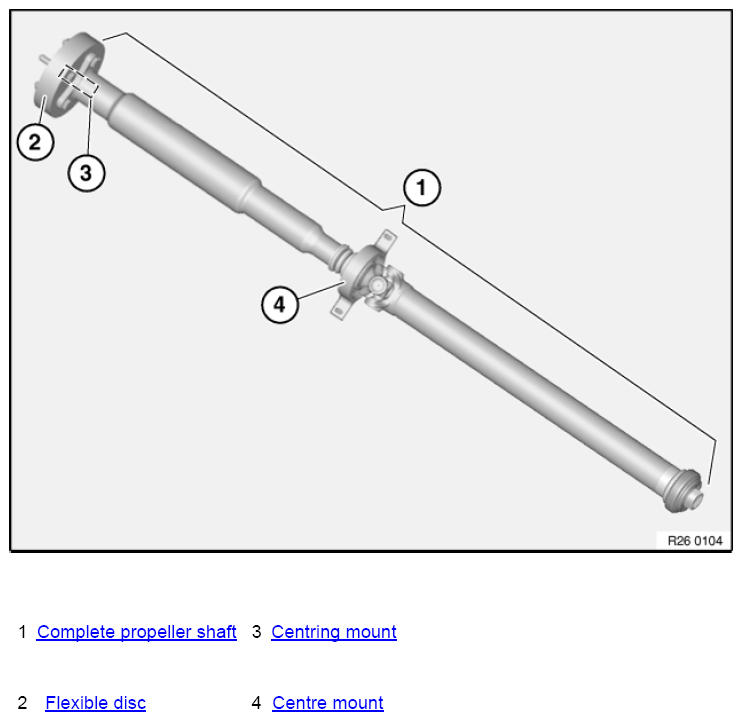

Fig 1: Overview Of Inserted Propeller Shaft

G10095050

Courtesy of BMW OF NORTH AMERICA, INC.
