31 00... Front axle + steering: wheel/chassis alignment check must be carried out after the following work

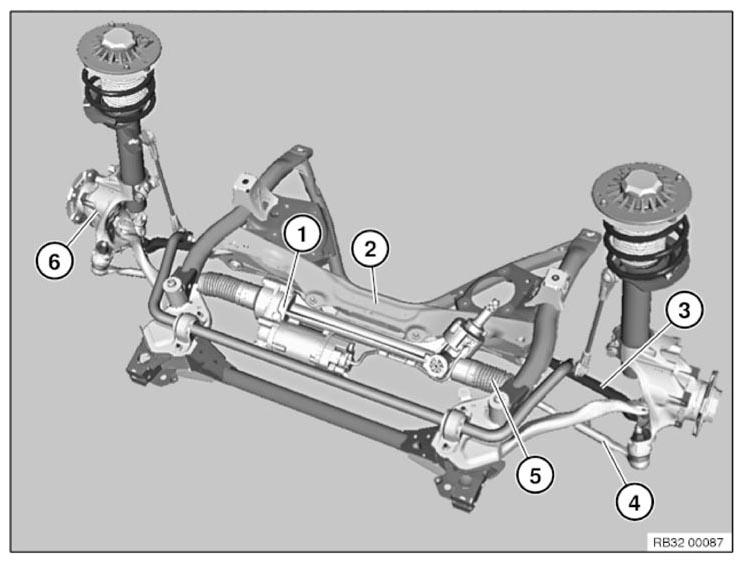

Fig 1: Identifying Steering Box, Front Axle Support And Wishbone

Courtesy of BMW OF NORTH AMERICA, INC.

A WHEEL ALIGNMENT CHECK  must be carried out after the following work:

Release the following screw connections:

• Steering box to front axle support
• Lower wishbone to front axle support
• Track rod end to track rod

Replace the following components:

• Steering box (1)
• Front axle support (2)
• Wishbone, bottom (3)
• Track rod end (4)
• Track rod (5)
• Swivel bearing (6)
