Remove front panel, center
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

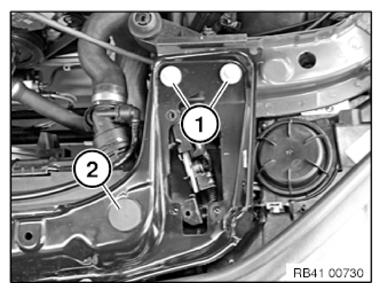

- Loosen screws (1).
- Loosen screws (2).

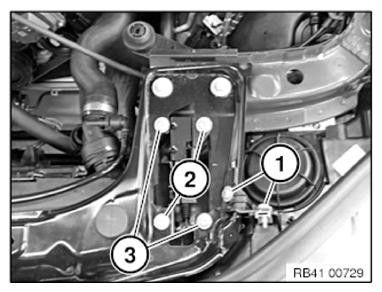

- Release screws (1) and remove the holder for the headlight.
- Unscrew the bolts (2) and place the bonnet lock directly under the front panel.
- Loosen screws (3).

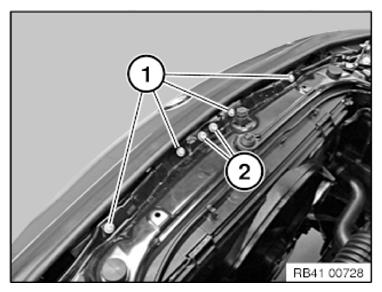

- Loosen screws (1).
- Remove the cover (2).

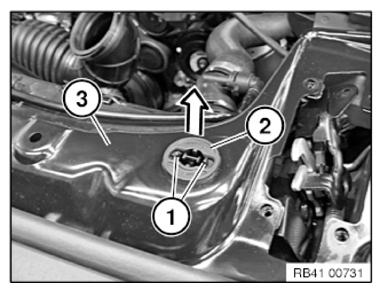

- Press the locks (1) together and pull out the securing pin (2) towards the top.
- Remove the center front panel (3).
