Remove complete exhaust system

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

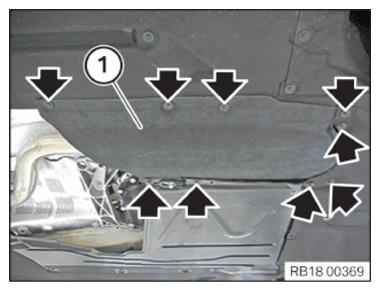

Remove screws (arrows).
Remove underbody protection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

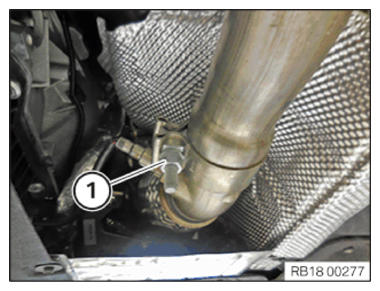

Unfasten clamp (1).
Pull off the exhaust system from the diesel particulate filter.

Courtesy of BMW OF NORTH AMERICA, INC.

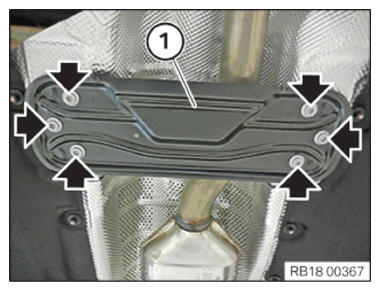

Remove screws (arrows).
Remove reinforcement plate (1).

Courtesy of BMW OF NORTH AMERICA, INC.

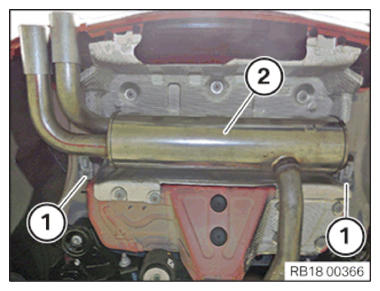

Loosen nuts (1).
Lower and remove the exhaust system (2) with the assistance of a second person.

Courtesy of BMW OF NORTH AMERICA, INC.
