Install front panel, center
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

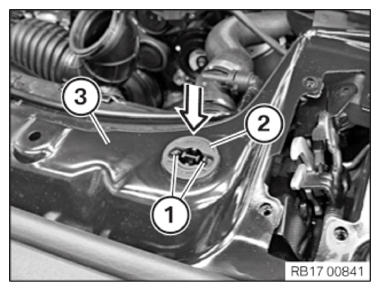

- Install the center front panel (3).
- Slide the securing pin (2) into the rubber mounts in the direction of the arrow and lock the locks (1).

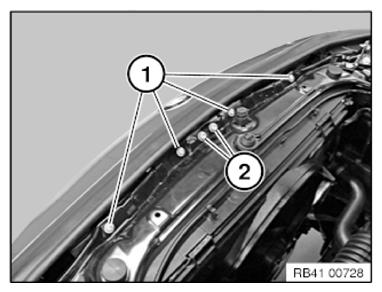

- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Front panel, middle, on carrier support | |
| M8x27 | 28 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Headlight to center front panel | |
| 5 Nm | |

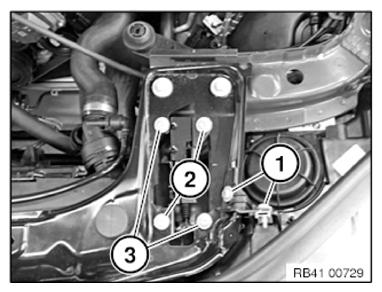

- Attach the bonnet lock on the center front panel with the screws (2).
- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Front lock support to support | |
| 11.8 Nm | |
- Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATIONS
| Center front panel to support | |
| 11.8 Nm | |
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Air duct to center front panel | |
| 5 Nm | |

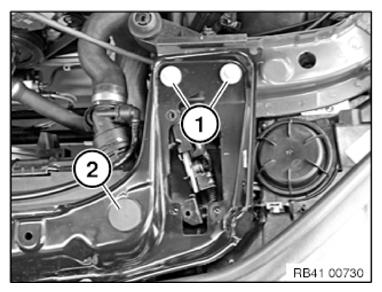

- Replace screws (2).
Parts: Bolts
- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Support to center front panel | |
| Replace screws. | 19 Nm |
