127420 - Adapter cable Minimum set: Measuring and testing equipment MP: Notes

NOTE: (V adapter cable set 58-pin) For diagnosis and troubleshooting on Digital Diesel Electronics 5.0 04/04 control unit; encoding with special probe (002250) removed - for N46, N52 and S85 engines. Set 12 7 420 consisting of 12 7 421 adapter cable and 12 7 422 cover plate 05/2004 set modification SI 2 03 04 (106)

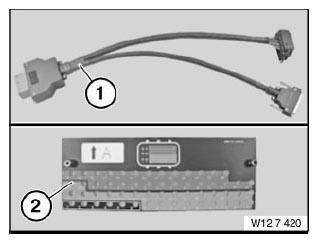

Fig 1: Identifying Adapter Cable Measuring And Testing Equipment MP (127420)

Courtesy of BMW OF NORTH AMERICA, INC.
