51 11... Removing and installing/replacing holder for PDC/PMA/side view camera on left or right
Necessary preliminary tasks:
- Remove SIDE VIEW CAMERA or ULTRASONIC SENSORS FOR PARKING MANEUVERING ASSISTANT
- Pull off the holder from the bumper with a suitable tool (holder is secured with double-sided adhesive tape.)
Observe NOTES for bonding with adhesive tape.
PDC holder:

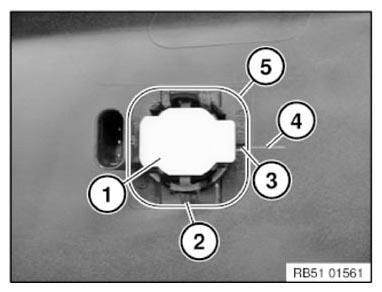

Insert ultrasonic sensor (1) in holder (2).
Clean bonding surface of bumper panel.
Mount holder (2) according to its installation position. Note the label on the holder (2).
Align visible notch (3) with mark (4) and bond holder (2).
Fasten holder (3) on all sides in area (5) with ADHESIVE SETK6 on bumper panel.
